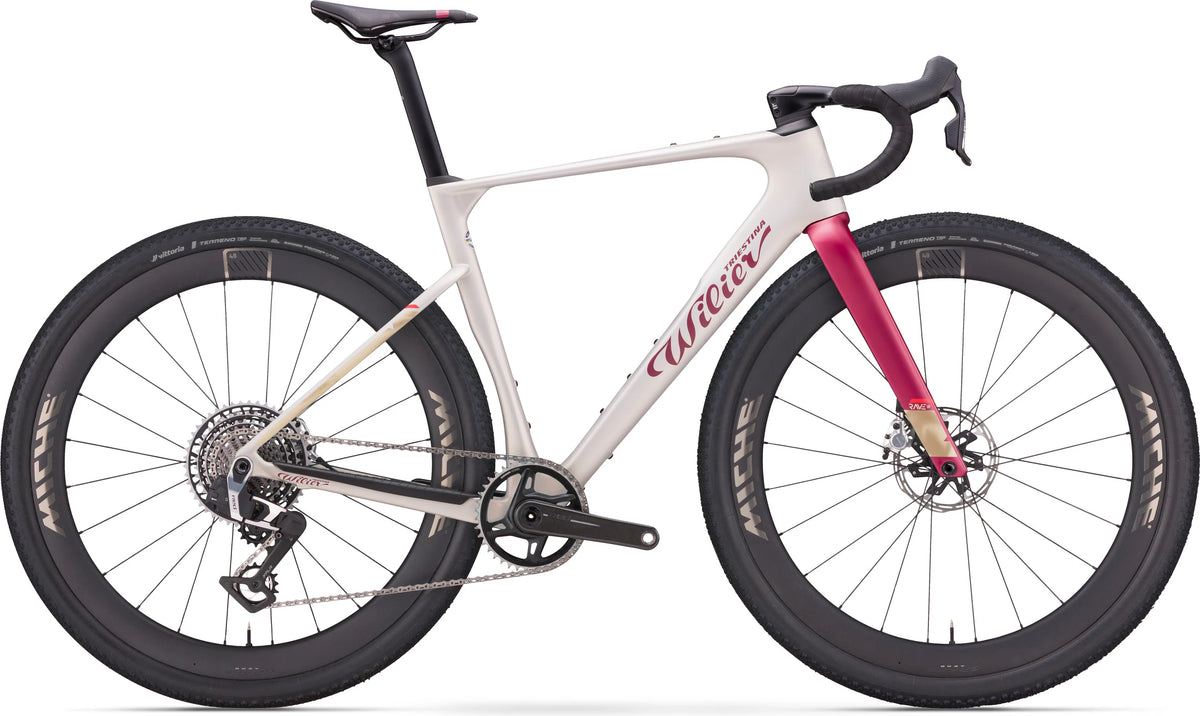

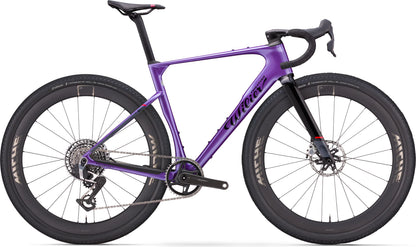

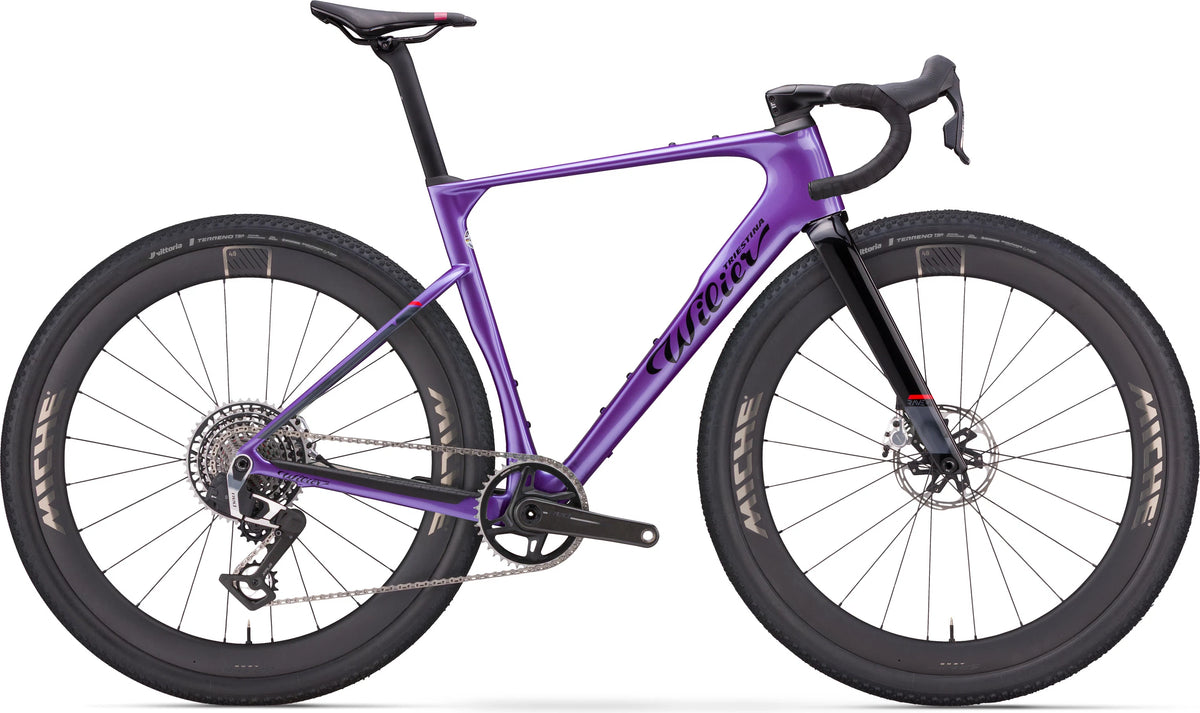

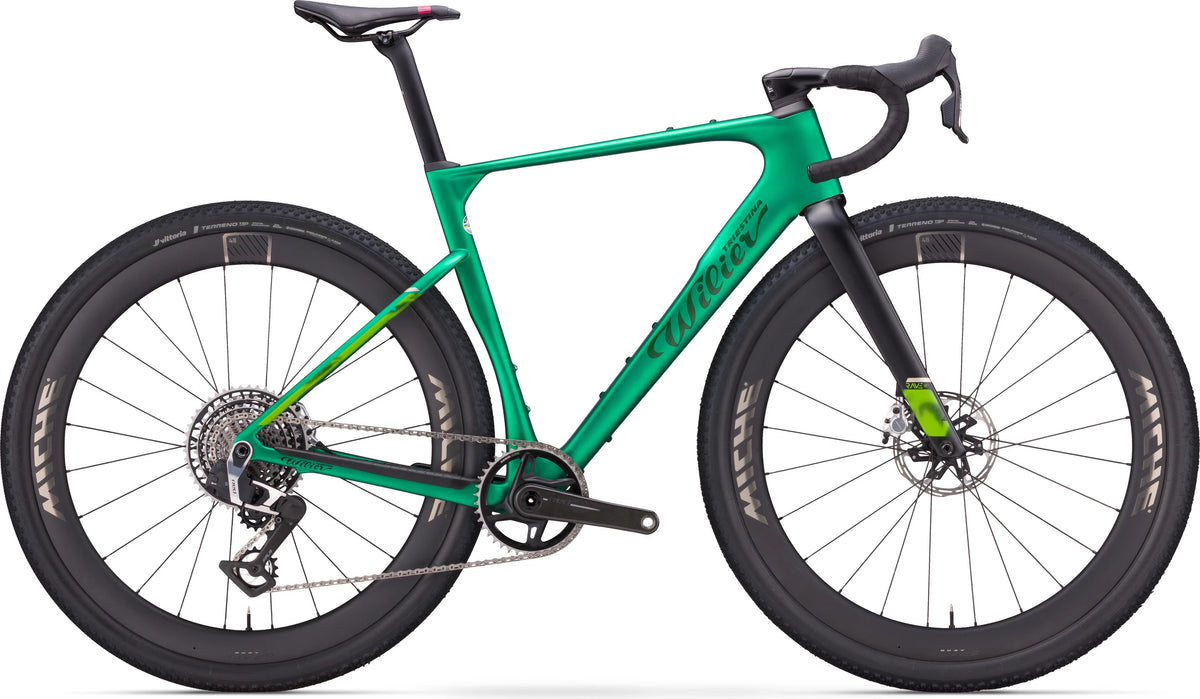

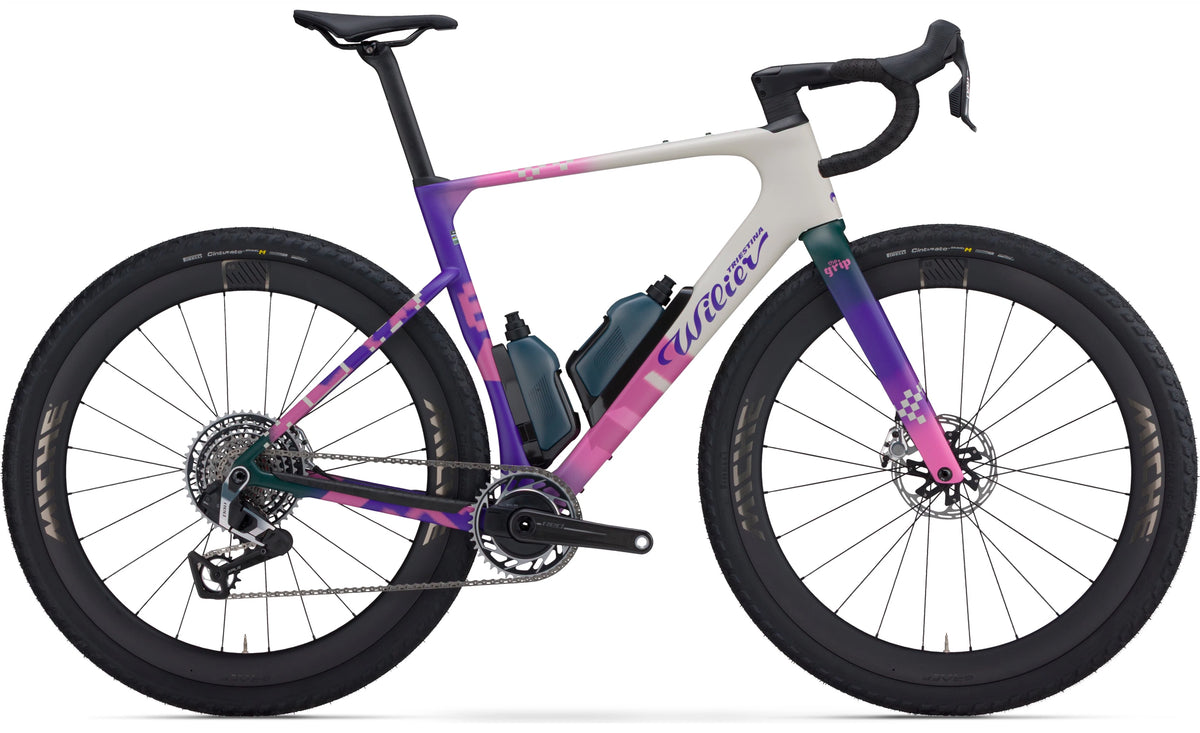

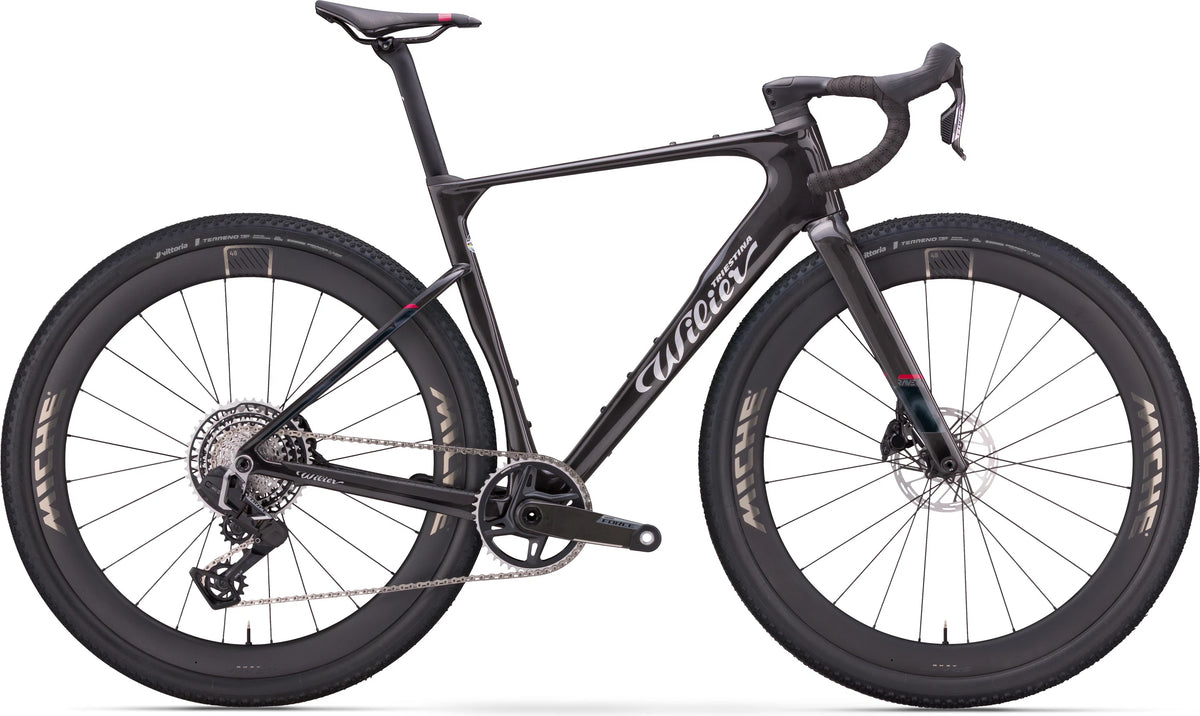

Wilier Rave SLR ID2 Gravel Bike

$21,159.00 NZD

Sale Sold out

Taxes included. Shipping calculated at checkout.

WorkRide Financing Available For All Bikes

"Beyond Reality. Faster."

Setup

E628CXG (with carbon F BAR + AEROKIT)
CAMPAGNOLO SUPER RECORD X 1x13S WRL + POWERMETER MICHE GRAFF AERO 48 CARBON Frame: RAVE ID2 - CARBON MONOCOQUE HUS MOD + LIQUID CRYSTAL POLYMER Fork: RAVE ID2 - CARBON MONOCOQUE HUS MOD + LIQUID CRYSTAL POLYMER H-Bar: F-BAR INTEGRATED CARBON CUSTOM MADE H-Bar weight: 380 g. +/- 5% Headset: CUSTOM SUPERSLIM 1-1/4" UPPER BR \| FSA MR137 1-1/4" LOWER BR Shifters: CAMPAGNOLO ERGOPOWER SUPER RECORD X WRL Brakes: CAMPAGNOLO SUPER RECORD BRAKE CALIPER Rotors: CAMPAGNOLO 03 AFS 160/160 mm Rear derailleur: CAMPAGNOLO SUPER RECORD X 1x13S WRL Crankset: CAMPAGNOLO SUPER RECORD X 1X13S WRL 40T Bottom bracket: CAMPAGNOLO QCK-TECH™ BB86 PRESS FIT 86,5X41 Cassette: CAMPANOLO SUPER RECORD X WRL 13S 10-48T Chain: CAMPAGNOLO SUPER RECORD 13S Tyres: VITTORIA TERRENO T50 700X50c TLR Clearance up to: 2.1" (53 mm) Saddle: PROLOGO SADDLE DIMENSION-AGX T4.0 143 BK Seatpost: WILIER FILANTE CARBON CUSTOM MADE -15 mm Axle: MICHE THRU AXLE 12X118F 12X165R Frame weight: 990 g +/- 5% Fork weight: 415 g +/- 5%
E628T4G (with carbon F BAR + AEROKIT)
SRAM RED XPLR AXS E1 1x13S + POWERMETER MICHE GRAFF AERO 48 CARBON Frame: RAVE ID2 - CARBON MONOCOQUE HUS MOD + LIQUID CRYSTAL POLYMER Fork: RAVE ID2 - CARBON MONOCOQUE HUS MOD + LIQUID CRYSTAL POLYMER H-Bar: F-BAR INTEGRATED CARBON CUSTOM MADE H-Bar weight: 380 g. +/- 5% Headset: CUSTOM SUPERSLIM 1-1/4" UPPER BR \| FSA MR137 1-1/4" LOWER BR Shifters: SRAM RED AXS ED-RED-E1 Brakes: SRAM RED AXS ED-RED-E1 Rotors: SRAM PACELINE X RT-PLN-X-A1 160 / 160 Rear derailleur: SRAM RED XPLR AXS RD-RED-1E-E1 Crankset: SRAM RED XPLR DUB WIDE FC-RED-1W-E1 40T Bottom bracket: SRAM DUB WIDE PRESS FIT 86.5 Cassette: SRAM RED XPLR XG-1391 CS-XG-1391-E1 10-46T Chain: SRAM RED CN-RED-E1 Tyres: VITTORIA TERRENO T50 700X50c TLR Clearance up to: 2.1" (53 mm) Saddle: PROLOGO SADDLE DIMENSION-AGX T4.0 143 BK Seatpost: WILIER FILANTE CARBON CUSTOM MADE -15 mm Axle: MICHE THRU AXLE 12X118F 12X165R Weight: 7,9 Kg. +/- 5% Frame weight: 990 g +/- 5% Fork weight: 415 g +/- 5%
E628T3G (with carbon F BAR + AEROKIT)
SRAM RED XPLR AXS E1 1x13S MICHE GRAFF AERO 48 CARBON Frame: RAVE ID2 - CARBON MONOCOQUE HUS MOD + LIQUID CRYSTAL POLYMER Fork: RAVE ID2 - CARBON MONOCOQUE HUS MOD + LIQUID CRYSTAL POLYMER H-Bar: F-BAR INTEGRATED CARBON CUSTOM MADE H-Bar weight: 380 g. +/- 5% Headset: CUSTOM SUPERSLIM 1-1/4" UPPER BR \| FSA MR137 1-1/4" LOWER BR Shifters: SRAM RED AXS ED-RED-E1 Brakes: SRAM RED AXS ED-RED-E1 Rotors: SRAM PACELINE X RT-PLN-X-A1 160 / 160 Rear derailleur: SRAM RED XPLR AXS RD-RED-1E-E1 Crankset: SRAM RED XPLR DUB WIDE FC-RED-1W-E1 40T Bottom bracket: SRAM DUB WIDE PRESS FIT 86.5 Cassette: SRAM RED XPLR XG-1391 CS-XG-1391-E1 10-46T Chain: SRAM RED CN-RED-E1 Tyres: VITTORIA TERRENO T50 700X50c TLR Clearance up to: 2.1" (53 mm) Saddle: PROLOGO SADDLE DIMENSION-AGX T4.0 143 BK Seatpost: WILIER FILANTE CARBON CUSTOM MADE -15 mm Axle: MICHE THRU AXLE 12X118F 12X165R Weight: 7,9 Kg. +/- 5% Frame weight: 990 g +/- 5% Fork weight: 415 g +/- 5%
NEW FUSION SETUP - E728FEES (with carbon F BAR + AEROKIT)
SRAM FORCE XPLR AXS E1 1x13S + POWERMETER MICHE KLEOS RD 62 CARBON Frame: RAVE ID2 - CARBON MONOCOQUE HUS MOD + LIQUID CRYSTAL POLYMER Fork: RAVE ID2 - CARBON MONOCOQUE HUS MOD + LIQUID CRYSTAL POLYMER H-Bar: F-BAR INTEGRATED CARBON CUSTOM MADE H-Bar weight: 380 g. +/- 5% Headset: CUSTOM SUPERSLIM 1-1/4" UPPER BR \| FSA MR137 1-1/4" LOWER BR Shifters: SRAM FORCE AXS ED-FRC-E1 Brakes: SRAM FORCE AXS ED-FRC-E1 Rotors: SRAM PACELINE RT-PLN-A1 160 / 160 Rear derailleur: SRAM FORCE XPLR AXS RD-FRC-1E-E1 Crankset: SRAM FORCE XPLR DUB FC-FRC-1W-E1 POWERMETER AERO CHAINRING 46T Bottom bracket: SRAM DUB WIDE PRESS FIT 86.5 Cassette: FORCE XPLR XG-1371 CS-XG-1371-E1 10-46T Chain: SRAM FORCE CN-FRC-E1 Tyres: VITTORIA CORSA PRO CONTROL 700x42c TLR G2.0 Clearance up to: 2.1" (53 mm) Saddle: PROLOGO SADDLE DIMENSION-AGX T4.0 143 BK Seatpost: WILIER FILANTE CARBON CUSTOM MADE -15 mm Axle: MICHE THRU AXLE 12X118F 12X165R Frame weight: 990 g +/- 5% Fork weight: 415 g +/- 5%
E628F4G (with carbon F BAR)
SRAM FORCE XPLR AXS E1 1x13S MICHE GRAFF AERO 48 CARBON Frame: RAVE ID2 - CARBON MONOCOQUE HUS MOD + LIQUID CRYSTAL POLYMER Fork: RAVE ID2 - CARBON MONOCOQUE HUS MOD + LIQUID CRYSTAL POLYMER H-Bar: F-BAR INTEGRATED CARBON CUSTOM MADE H-Bar weight: 380 g. +/- 5% Headset: CUSTOM SUPERSLIM 1-1/4" UPPER BR \| FSA MR137 1-1/4" LOWER BR Shifters: SRAM FORCE AXS ED-FRC-E1 Brakes: SRAM FORCE AXS ED-FRC-E1 Rotors: SRAM PACELINE RT-PLN-A1 160 / 160 Rear derailleur: SRAM FORCE XPLR AXS RD-FRC-1E-E1 Crankset: SRAM FORCE XPLR DUB WIDE FC-FRC-1W-E1 40T Bottom bracket: SRAM DUB WIDE PRESS FIT 86.5 Cassette: FORCE XPLR XG-1371 CS-XG-1371-E1 10-46T Chain: SRAM FORCE CN-FRC-E1 Tyres: VITTORIA TERRENO T50 700X50c TLR Clearance up to: 2.1" (53 mm) Saddle: PROLOGO SADDLE DIMENSION-AGX T4.0 143 BK Seatpost: WILIER FILANTE CARBON CUSTOM MADE -15 mm Axle: MICHE THRU AXLE 12X118F 12X165R Weight: 8,45 Kg. +/- 5% Frame weight: 990 g +/- 5% Fork weight: 415 g +/- 5%
E628G4G (with carbon F BAR)
SHIMANO GRX Di2 1x12S MICHE GRAFF AERO 48 CARBON Frame: RAVE ID2 - CARBON MONOCOQUE HUS MOD + LIQUID CRYSTAL POLYMER Fork: RAVE ID2 - CARBON MONOCOQUE HUS MOD + LIQUID CRYSTAL POLYMER H-Bar: F-BAR INTEGRATED CARBON CUSTOM MADE H-Bar weight: 380 g. +/- 5% Headset: CUSTOM SUPERSLIM 1-1/4" UPPER BR \| FSA MR137 1-1/4" LOWER BR Shifters: SHIMANO GRX Di2 Brakes: SHIMANO GRX BR-RX410 Rotors: SHIMANO SM-RT64 160 / 160 Rear derailleur: SHIMANO GRX RD-RX827-SGS Crankset: SHIMANO GRX FC-RX610-1 40T Bottom bracket: SHIMANO PRESSFIT 86.5X41 Cassette: SHIMANO CS-M6100-12 10-51T Chain: SHIMANO CN-M6100 Tyres: VITTORIA TERRENO T50 700X50c TLR Clearance up to: 2.1" (53 mm) Saddle: PROLOGO SADDLE DIMENSION-AGX T4.0 143 BK Seatpost: WILIER FILANTE CARBON CUSTOM MADE -15 mm Axle: MICHE THRU AXLE 12X118F 12X165R Weight: 8,65 Kg. +/- 5% Frame weight: 990 g +/- 5% Fork weight: 415 g +/- 5%
E628VYST (with carbon F BAR)
SRAM RIVAL XPLR AXS E1 1x13S MICHE STERRATO 45 CARBON Frame: RAVE ID2 - CARBON MONOCOQUE HUS MOD + LIQUID CRYSTAL POLYMER Fork: RAVE ID2 - CARBON MONOCOQUE HUS MOD + LIQUID CRYSTAL POLYMER H-Bar: F-BAR INTEGRATED CARBON CUSTOM MADE H-Bar weight: 380 g. +/- 5% Headset: CUSTOM SUPERSLIM 1-1/4" UPPER BR \| FSA MR137 1-1/4" LOWER BR Shifters: SRAM RIVAL AXS ED-RIV-E1 Brakes: SRAM RIVAL AXS ED-RIV-E1 Rotors: SRAM PACELINE RT-CLN-A2 160 / 160 Rear derailleur: SRAM RIVAL XPLR AXS RD-RIV-1E-E1 Crankset: SRAM RIVAL XPLR DUB WIDE FC-RIV-1W-D1 40T Bottom bracket: SRAM DUB WIDE PRESS FIT 86.5 Cassette: RIVAL XPLR XG-1351 CS-XG-1351-E1 10-46T Chain: SRAM RIVAL CN-RIV-E1 Tyres: VITTORIA TERRENO T50 700X50c TLR Clearance up to: 2.1" (53 mm) Saddle: PROLOGO SADDLE DIMENSION-AGX T4.0 143 BK Seatpost: WILIER FILANTE CARBON CUSTOM MADE -15 mm Axle: MICHE THRU AXLE 12X118F 12X165R Weight: 8,85 Kg. +/- 5% Frame weight: 990 g +/- 5% Fork weight: 415 g +/- 5%
E628G4ST (with alloy STEMMA S2)
SHIMANO GRX Di2 1x12S MICHE STERRATO 45 CARBON Frame: RAVE ID2 - CARBON MONOCOQUE HUS MOD + LIQUID CRYSTAL POLYMER Fork: RAVE ID2 - CARBON MONOCOQUE HUS MOD + LIQUID CRYSTAL POLYMER H-Bar: RITCHEY \| WILIER BARRA S2 ALLOY H-Bar weight: 320 g +/- 5% Stem: RITCHEY \| WILIER STEMMA S2 ALLOY Headset: CUSTOM SUPERSLIM 1-1/4" UPPER BR \| FSA MR137 1-1/4" LOWER BR Shifters: SHIMANO GRX Di2 Brakes: SHIMANO GRX BR-RX410 Rotors: SHIMANO RT-CL700 160 / 160 Rear derailleur: SHIMANO GRX RD-RX827-SGS Crankset: SHIMANO GRX FC-RX610-1 40T Bottom bracket: SHIMANO PRESSFIT 86.5X41 Cassette: SHIMANO CS-M6100-12 10-51T Chain: SHIMANO CN-M6100 Tyres: VITTORIA TERRENO T50 700X50c TLR Clearance up to: 2.1" (53 mm) Saddle: PROLOGO SADDLE DIMENSION-AGX T4.0 143 BK Seatpost: WILIER FILANTE CARBON CUSTOM MADE -15 mm Axle: MICHE THRU AXLE 12X118F 12X165R Weight: 9,25 Kg. +/- 5% Frame weight: 990 g +/- 5% Fork weight: 415 g +/- 5%
E628VYSTS (with alloy STEMMA S2)
SRAM RIVAL XPLR AXS E1 1x13S MICHE STERRATO 45 CARBON Frame: RAVE ID2 - CARBON MONOCOQUE HUS MOD + LIQUID CRYSTAL POLYMER Fork: RAVE ID2 - CARBON MONOCOQUE HUS MOD + LIQUID CRYSTAL POLYMER H-Bar: RITCHEY \| WILIER BARRA S2 ALLOY H-Bar weight: 320 g +/- 5% Stem: RITCHEY \| WILIER STEMMA S2 ALLOY Headset: CUSTOM SUPERSLIM 1-1/4" UPPER BR \| FSA MR137 1-1/4" LOWER BR Shifters: SRAM RIVAL AXS ED-RIV-E1 Brakes: SRAM RIVAL AXS ED-RIV-E1 Rotors: SRAM PACELINE RT-CLN-A2 160 / 160 Rear derailleur: SRAM RIVAL XPLR AXS RD-RIV-1E-E1 Crankset: SRAM RIVAL XPLR DUB WIDE FC-RIV-1W-D1 40T Bottom bracket: SRAM DUB WIDE PRESS FIT 86.5 Cassette: RIVAL XPLR XG-1351 CS-XG-1351-E1 10-46T Chain: SRAM RIVAL CN-RIV-E1 Tyres: VITTORIA TERRENO T50 700X50c TLR Clearance up to: 2.1" (53 mm) Saddle: PROLOGO SADDLE DIMENSION-AGX T4.0 143 BK Seatpost: WILIER FILANTE CARBON CUSTOM MADE -15 mm Axle: MICHE THRU AXLE 12X118F 12X165R Weight: 9,00 Kg. +/- 5% Frame weight: 990 g +/- 5% Fork weight: 415 g +/- 5%
E628G4D (with alloy STEMMA S2)
SHIMANO GRX Di2 1x12S MICHE GRAFF Frame: RAVE ID2 - CARBON MONOCOQUE HUS MOD + LIQUID CRYSTAL POLYMER Fork: RAVE ID2 - CARBON MONOCOQUE HUS MOD + LIQUID CRYSTAL POLYMER H-Bar: RITCHEY \| WILIER BARRA S2 ALLOY H-Bar weight: 320 g +/- 5% Stem: RITCHEY \| WILIER STEMMA S2 ALLOY Headset: CUSTOM SUPERSLIM 1-1/4" UPPER BR \| FSA MR137 1-1/4" LOWER BR Shifters: SHIMANO GRX Di2 Brakes: SHIMANO GRX BR-RX410 Rotors: SHIMANO RT-CL700 160 / 160 Rear derailleur: SHIMANO GRX RD-RX827-SGS Crankset: SHIMANO GRX FC-RX610-1 40T Bottom bracket: SHIMANO PRESSFIT 86.5X41 Cassette: SHIMANO CS-M6100-12 10-51T Chain: SHIMANO CN-M6100 Tyres: VITTORIA TERRENO T50 700X50c TLR Clearance up to: 2.1" (53 mm) Saddle: PROLOGO SADDLE DIMENSION-AGX T4.0 143 BK Seatpost: WILIER FILANTE CARBON CUSTOM MADE -15 mm Axle: MICHE THRU AXLE 12X118F 12X165R Weight: 9,45 Kg. +/- 5% Frame weight: 990 g +/- 5% Fork weight: 415 g +/- 5%
E628VYD (with alloy STEMMA S2)
SRAM RIVAL XPLR AXS E1 1x13S MICHE GRAFF Frame: RAVE ID2 - CARBON MONOCOQUE HUS MOD + LIQUID CRYSTAL POLYMER Fork: RAVE ID2 - CARBON MONOCOQUE HUS MOD + LIQUID CRYSTAL POLYMER H-Bar: RITCHEY \| WILIER BARRA S2 ALLOY H-Bar weight: 320 g +/- 5% Stem: RITCHEY \| WILIER STEMMA S2 ALLOY Headset: CUSTOM SUPERSLIM 1-1/4" UPPER BR \| FSA MR137 1-1/4" LOWER BR Shifters: SRAM RIVAL AXS ED-RIV-E1 Brakes: SRAM RIVAL AXS ED-RIV-E1 Rotors: SRAM PACELINE RT-CLN-A2 160 / 160 Rear derailleur: SRAM RIVAL XPLR AXS RD-RIV-1E-E1 Crankset: SRAM RIVAL XPLR DUB WIDE FC-RIV-1W-D1 40T Bottom bracket: SRAM DUB WIDE PRESS FIT 86.5 Cassette: RIVAL XPLR XG-1351 CS-XG-1351-E1 10-46T Chain: SRAM RIVAL CN-RIV-E1 Tyres: VITTORIA TERRENO T50 700X50c TLR Clearance up to: 2.1" (53 mm) Saddle: PROLOGO SADDLE DIMENSION-AGX T4.0 143 BK Seatpost: WILIER FILANTE CARBON CUSTOM MADE -15 mm Axle: MICHE THRU AXLE 12X118F 12X165R Weight: 9,45 Kg. +/- 5% Frame weight: 990 g +/- 5% Fork weight: 415 g +/- 5%
E628 (with carbon F BAR)
Frame: RAVE ID2 - CARBON MONOCOQUE HUS MOD + LIQUID CRYSTAL POLYMER Fork: RAVE ID2 - CARBON MONOCOQUE HUS MOD + LIQUID CRYSTAL POLYMER H-Bar: F-BAR INTEGRATED CARBON CUSTOM MADE H-Bar weight: 380 g. +/- 5% Headset: CUSTOM SUPERSLIM 1-1/4" UPPER BR \| FSA MR137 1-1/4" LOWER BR Clearance up to: 2.1" (53 mm) Seatpost: WILIER FILANTE CARBON CUSTOM MADE -15 mm Axle: MICHE THRU AXLE 12X118F 12X165R Frame weight: 990 g +/- 5% Fork weight: 415 g +/- 5%

The prices, specifications and photos shown in this catalog are not subject to any contractual obligation and may change during the season.

Geometries

	XS	S	M	L	XL	XXL
C/C (cm)	43.2	46.2	48.2	50.2	52.2	54.2
L (cm)	51.6	53.2	54.9	56.6	58.3	59.7
H (cm)	45	48	50	52	54	56
A (°)	75.5	74.7	74	73.5	73	73
L1 (cm)	41.9	41.9	42.1	42.1	42.3	42.3
H1 (cm)	10.7	11.8	13.1	14.8	16.6	18.5
A1 (°)	69.2	70	70.8	71.2	71.6	72
Reach (mm)	375	381	387	393	400	408
Stack (mm)	532	546	561	579	597	617
Wheelbase (mm)	1014	1017	1022	1031	1042	1052
