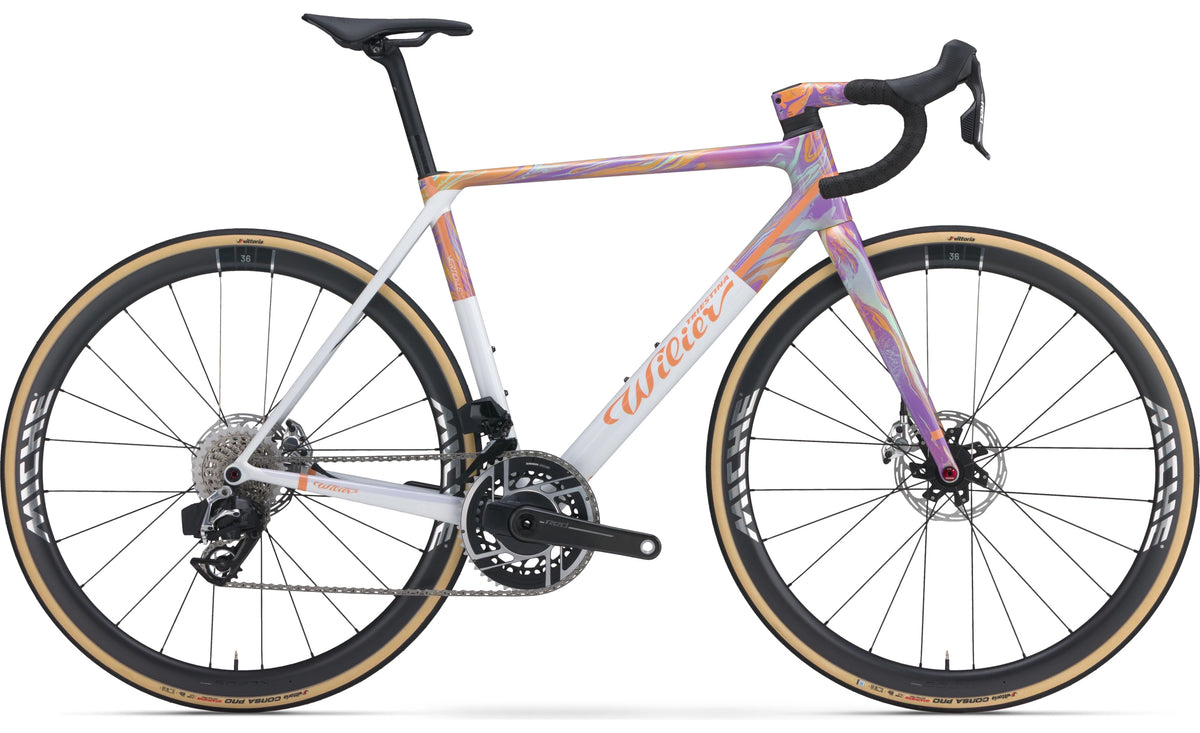

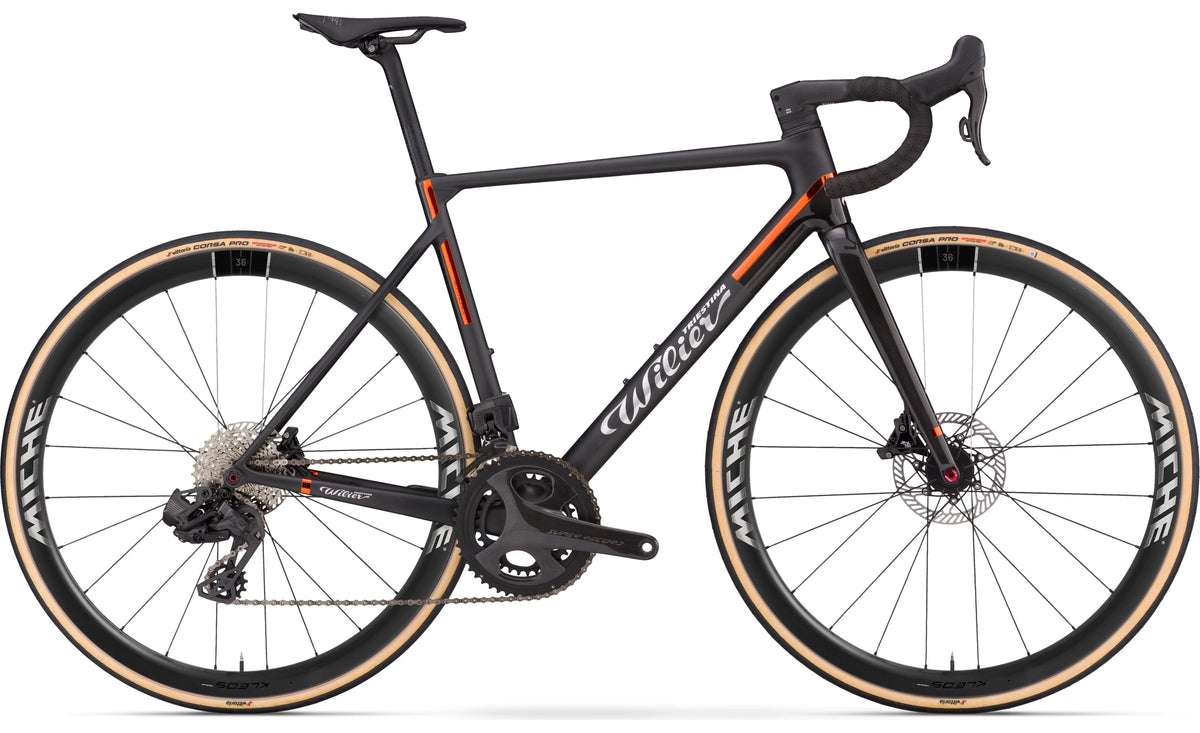

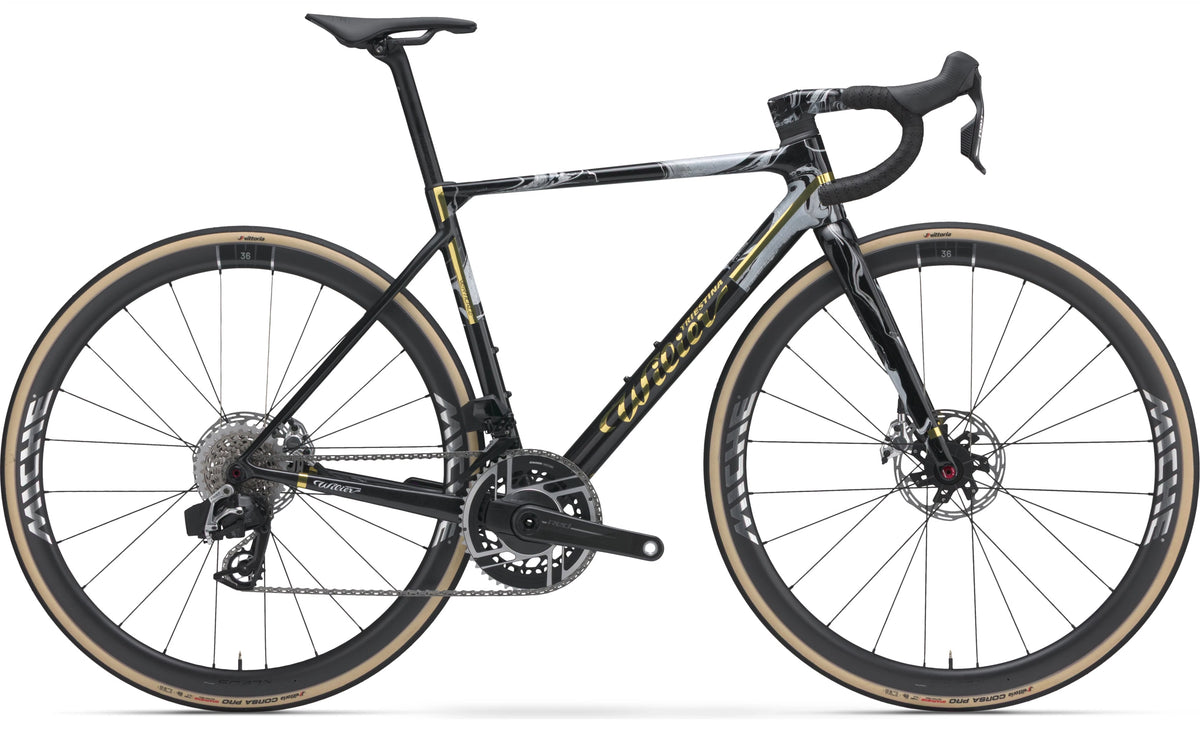

Wilier Verticale SLR Road Bike

Wilier Verticale SLR Road Bike

$24,949.00 NZD
$24,949.00 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.
WorkRide Financing Available For All Bikes

"Lighter Than Light"

Setup

E608WLK

CAMPAGNOLO SUPER RECORD WRL 2x13
MICHE KLEOS RD 36 CARBON | CERAMICSPEED BEARINGS
Frame: VERTICALE SLR - TORAY T800+T1100 M46JB CARBON MONOCOQUE
Fork: VERTICALE SLR - TORAY T800+T1100 M46 JB CARBON MONOCOQUE
H-Bar: V BAR INTEGRATED CARBON CUSTOM MADE + GARMIN/WAHOO MOUNT
H-Bar weight: 310 g +/- 5%
Headset: CUSTOM SUPERSLIM 1-1/4" UPPER BR | FSA MR137 1-1/4" LOWER BR
Shifters: CAMPAGNOLO SUPER RECORD 13 LEVER
Brakes: CAMPAGNOLO SUPER RECORD BRAKE CALIPER
Rotors: CAMPAGNOLO 03 DISC 160 / 160
Front derailleur: CAMPAGNOLO SUPER RECORD 13 FRONT DERAILLEUR
Rear derailleur: CAMPAGNOLO SUPER RECORD 13 REAR DERAILLEUR
Crankset: CAMPAGNOLO SUPER RECORD 13 CRANKSET 34-50T
Bottom bracket: CAMPAGNOLO BOTTOM BRACKET QCK-TECH™ PRESSFIT
Cassette: CAMPAGNOLO SUPER RECORD 13 CASSETTE 10-33T
Chain: CAMPAGNOLO CHAIN SUPER RECORD 13
Tyres: VITTORIA CORSA PRO 700X28c
Clearance up to: 32 mm
Saddle: PROLOGO NAGO R4 PAS CARBON RAILS
Seatpost: WILIER VERTICALE CARBON CUSTOM MADE -15 mm + REAR LIGHT
Axle: MICHE THRU AXLE LIGHT 12X118F 12X165R
Weight: 6,57 Kg +/- 5%
Frame weight: 720 g +/- 5%
Fork weight: 320 g +/- 5%

E508TBK
SRAM RED AXS E1 2x12 + POWERMETER
MICHE KLEOS RD 36 CARBON | CERAMICSPEED BEARINGS
Frame: VERTICALE SLR - TORAY T800+T1100 M46JB CARBON MONOCOQUE
Fork: VERTICALE SLR - TORAY T800+T1100 M46 JB CARBON MONOCOQUE
H-Bar: V BAR INTEGRATED CARBON CUSTOM MADE + GARMIN/WAHOO MOUNT
H-Bar weight: 310 g +/- 5%
Headset: CUSTOM SUPERSLIM 1-1/4" UPPER BR | FSA MR137 1-1/4" LOWER BR
Shifters: SRAM RED AXS ED-RED-E1
Brakes: SRAM RED AXS ED-RED-E1
Rotors: SRAM PACELINE X RT-PLN-X-A1 160 / 160
Front derailleur: SRAM RED AXS FD-RED-E-E1
Rear derailleur: SRAM RED AXS E1
Crankset: SRAM RED E1 DUB FC-RED-P-E1 WITH POWERMETER 48-35T
Bottom bracket: SRAM DUB 86.5 PRESS FIT ROAD
Cassette: SRAM RED CS-XG-1290-E1 10-36T
Chain: SRAM RED CN-RED-E1
Tyres: VITTORIA CORSA PRO 700X28c
Clearance up to: 32 mm
Saddle: PROLOGO NAGO R4 PAS CARBON RAILS
Seatpost: WILIER VERTICALE CARBON CUSTOM MADE -15 mm + REAR LIGHT
Axle: MICHE THRU AXLE LIGHT 12X118F 12X165R
Weight: 6,69 Kg +/- 5%
Frame weight: 720 g +/- 5%
Fork weight: 320 g +/- 5%

E508IPK

SHIMANO DURA ACE Di2 R9270 + POWERMETER
MICHE KLEOS RD 36 CARBON | CERAMICSPEED BEARINGS
Frame: VERTICALE SLR - TORAY T800+T1100 M46JB CARBON MONOCOQUE
Fork: VERTICALE SLR - TORAY T800+T1100 M46 JB CARBON MONOCOQUE
H-Bar: V BAR INTEGRATED CARBON CUSTOM MADE + GARMIN/WAHOO MOUNT
H-Bar weight: 310 g +/- 5%
Headset: CUSTOM SUPERSLIM 1-1/4" UPPER BR | FSA MR137 1-1/4" LOWER BR
Shifters: SHIMANO DURA-ACE Di2 ST-R9270
Brakes: SHIMANO DURA-ACE BR-R9270
Rotors: SHIMANO DURA-ACE RT-CL900 160 / 140
Front derailleur: SHIMANO DURA-ACE Di2 FD-R9250
Rear derailleur: SHIMANO DURA-ACE Di2 FD-R9250
Crankset: SHIMANO DURA-ACE FC-R9200-P 52-36T
Bottom bracket: MICHE INTEGRALE RD | CERAMICSPEED PRESSFIT 86.5X41
Cassette: SHIMANO DURA-ACE CS-R9200-12 11-30T
Chain: SHIMANO DURA-ACE CN-M9100
Tyres: VITTORIA CORSA PRO 700X28c
Clearance up to: 32 mm
Saddle: PROLOGO NAGO R4 PAS CARBON RAILS
Seatpost: WILIER VERTICALE CARBON CUSTOM MADE -15 mm + REAR LIGHT
Axle: MICHE THRU AXLE LIGHT 12X118F 12X165R
Weight: 6,75 Kg +/- 5%
Frame weight: 720 g +/- 5%
Fork weight: 320 g +/- 5%

E508IDK

SHIMANO DURA ACE Di2 R9270
MICHE KLEOS RD 36 CARBON | CERAMICSPEED BEARINGS
Frame: VERTICALE SLR - TORAY T800+T1100 M46JB CARBON MONOCOQUE
Fork: VERTICALE SLR - TORAY T800+T1100 M46 JB CARBON MONOCOQUE
H-Bar: V BAR INTEGRATED CARBON CUSTOM MADE + GARMIN/WAHOO MOUNT
H-Bar weight: 310 g +/- 5%
Headset: CUSTOM SUPERSLIM 1-1/4" UPPER BR | FSA MR137 1-1/4" LOWER BR
Shifters: SHIMANO DURA-ACE Di2 ST-R9270
Brakes: SHIMANO DURA-ACE BR-R9270
Rotors: SHIMANO DURA-ACE RT-CL900 160 / 140
Front derailleur: SHIMANO DURA-ACE Di2 FD-R9250
Rear derailleur: SHIMANO DURA-ACE Di2 FD-R9250
Crankset: SHIMANO DURA-ACE FC-R9200 50-34T
Bottom bracket: MICHE INTEGRALE RD | CERAMICSPEED PRESSFIT 86.5X41
Cassette: SHIMANO DURA-ACE CS-R9200-12 11-30T
Chain: SHIMANO DURA-ACE CN-M9100
Tyres: VITTORIA CORSA PRO 700X28c
Clearance up to: 32 mm
Saddle: PROLOGO NAGO R4 PAS CARBON RAILS
Seatpost: WILIER VERTICALE CARBON CUSTOM MADE -15 mm + REAR LIGHT
Axle: MICHE THRU AXLE LIGHT 12X118F 12X165R
Weight: 6,65 Kg +/- 5%
Frame weight: 720 g +/- 5%
Fork weight: 320 g +/- 5%

E608IDL

SHIMANO DURA ACE Di2 R9270
MICHE KLEOS 42 CARBON
Frame: VERTICALE SLR - TORAY T800+T1100 M46JB CARBON MONOCOQUE
Fork: VERTICALE SLR - TORAY T800+T1100 M46 JB CARBON MONOCOQUE
H-Bar: V BAR INTEGRATED CARBON CUSTOM MADE + GARMIN/WAHOO MOUNT
H-Bar weight: 310 g +/- 5%
Headset: CUSTOM SUPERSLIM 1-1/4" UPPER BR | FSA MR137 1-1/4" LOWER BR
Shifters: SHIMANO DURA-ACE Di2 ST-R9270
Brakes: SHIMANO DURA-ACE BR-R9270
Rotors: SHIMANO DURA-ACE RT-CL900 160 / 140
Front derailleur: SHIMANO DURA-ACE Di2 FD-R9250
Rear derailleur: SHIMANO DURA-ACE Di2 FD-R9250
Crankset: SHIMANO DURA-ACE FC-R9200 50-34T
Bottom bracket: MICHE INTEGRALE PRESSFIT 86.5X41
Cassette: SHIMANO DURA-ACE CS-R9200-12 11-30T
Chain: SHIMANO DURA-ACE CN-M9100
Tyres: VITTORIA CORSA PRO 700X28c
Clearance up to: 32 mm
Saddle: PROLOGO NAGO R4 PAS CARBON RAILS
Seatpost: WILIER VERTICALE CARBON CUSTOM MADE -15 mm + REAR LIGHT
Axle: MICHE THRU AXLE LIGHT 12X118F 12X165R
Frame weight: 720 g +/- 5%
Fork weight: 320 g +/- 5%

E608FNL

SRAM FORCE AXS E1 2x12 + POWERMETER
MICHE KLEOS 42 CARBON
Frame: VERTICALE SLR - TORAY T800+T1100 M46JB CARBON MONOCOQUE
Fork: VERTICALE SLR - TORAY T800+T1100 M46 JB CARBON MONOCOQUE
H-Bar: V BAR INTEGRATED CARBON CUSTOM MADE + GARMIN/WAHOO MOUNT
H-Bar weight: 310 g +/- 5%
Headset: CUSTOM SUPERSLIM 1-1/4" UPPER BR | FSA MR137 1-1/4" LOWER BR
Shifters: SRAM FORCE AXS ED-FRC-E1
Brakes: SRAM FORCE AXS ED-FRC-E1
Rotors: SRAM PACELINE RT-PLN-A1 160 / 160
Front derailleur: SRAM FORCE FD-FRC-E-E1
Rear derailleur: SRAM FORCE AXS RD-FRC-E-E1
Crankset: SRAM FORCE FC-FRC-P-E1 48-35
Bottom bracket: SRAM DUB PRESS FIT 86.5 ROAD
Cassette: SRAM FORCE CS-XG-1270-E1 10-33T
Chain: SRAM FORCE CN-FRC-E1
Tyres: VITTORIA CORSA PRO 700X28c
Clearance up to: 32 mm
Saddle: PROLOGO NAGO R4 PAS TIROX RAILS 137mm
Seatpost: WILIER FILANTE CARBON CUSTOM MADE -15 mm
Axle: MICHE THRU AXLE LIGHT 12X119.5F 12X166.5R
Frame weight: 720 g +/- 5%
Fork weight: 320 g +/- 5%

E608F3L

SRAM FORCE AXS E1 2x12
MICHE KLEOS 42 CARBON
Frame: VERTICALE SLR - TORAY T800+T1100 M46JB CARBON MONOCOQUE
Fork: VERTICALE SLR - TORAY T800+T1100 M46 JB CARBON MONOCOQUE
H-Bar: V BAR INTEGRATED CARBON CUSTOM MADE + GARMIN/WAHOO MOUNT
H-Bar weight: 310 g +/- 5%
Headset: CUSTOM SUPERSLIM 1-1/4" UPPER BR | FSA MR137 1-1/4" LOWER BR
Shifters: SRAM FORCE AXS ED-FRC-E1
Brakes: SRAM FORCE AXS ED-FRC-E1
Rotors: SRAM PACELINE RT-PLN-A1 160 / 160
Front derailleur: SRAM FORCE FD-FRC-E-E1
Rear derailleur: SRAM FORCE AXS RD-FRC-E-E1
Crankset: SRAM FORCE FC-FRC-E1 48-35
Bottom bracket: SRAM DUB PRESS FIT 86.5 ROAD
Cassette: SRAM FORCE CS-XG-1270-E1 10-33T
Chain: SRAM FORCE CN-FRC-E1
Tyres: VITTORIA CORSA PRO 700X28c
Clearance up to: 32 mm
Saddle: PROLOGO NAGO R4 PAS TIROX RAILS 137mm
Seatpost: WILIER FILANTE CARBON CUSTOM MADE -15 mm
Axle: MICHE THRU AXLE LIGHT 12X119.5F 12X166.5R
Frame weight: 720 g +/- 5%
Fork weight: 320 g +/- 5%

E508LDL

SHIMANO ULTEGRA Di2 R8170
MICHE KLEOS 42 CARBON
Frame: VERTICALE SLR - TORAY T800+T1100 M46JB CARBON MONOCOQUE
Fork: VERTICALE SLR - TORAY T800+T1100 M46 JB CARBON MONOCOQUE
H-Bar: V BAR INTEGRATED CARBON CUSTOM MADE + GARMIN/WAHOO MOUNT
H-Bar weight: 310 g +/- 5%
Headset: CUSTOM SUPERSLIM 1-1/4" UPPER BR | FSA MR137 1-1/4" LOWER BR
Shifters: SHIMANO ULTEGRA Di2 ST-R8170
Brakes: SHIMANO ULTEGRA Di2 R8170
Rotors: SHIMANO RT-CL800 160 / 140
Front derailleur: SHIMANO ULTEGRA Di2 FD-R8150
Rear derailleur: SHIMANO ULTEGRA Di2 RD-R8150
Crankset: SHIMANO ULTEGRA FC-R8100 50-34T
Bottom bracket: MICHE INTEGRALE PRESSFIT 86.5X41
Cassette: SHIMANO ULTEGRA CS-R8101-12 11-30T
Chain: SHIMANO ULTEGRA CN-M8100
Tyres: VITTORIA CORSA PRO 700X28c
Clearance up to: 32 mm
Saddle: PROLOGO NAGO R4 PAS TIROX RAILS 137mm
Seatpost: WILIER VERTICALE CARBON CUSTOM MADE -15 mm + REAR LIGHT
Axle: MICHE THRU AXLE LIGHT 12X118F 12X165R
Frame weight: 720 g +/- 5%
Fork weight: 320 g +/- 5%

E508 (FRAMESET with carbon V-BAR + Rear Light)

Frame: VERTICALE SLR - TORAY T800+T1100 M46JB CARBON MONOCOQUE
Fork: VERTICALE SLR - TORAY T800+T1100 M46 JB CARBON MONOCOQUE
H-Bar: V BAR INTEGRATED CARBON CUSTOM MADE + GARMIN/WAHOO MOUNT
H-Bar weight: 310 g +/- 5%
Headset: CUSTOM SUPERSLIM 1-1/4" UPPER BR | FSA MR137 1-1/4" LOWER BR
Clearance up to: 32 mm
Seatpost: WILIER VERTICALE CARBON CUSTOM MADE -15 mm + REAR LIGHT
Axle: MICHE THRU AXLE LIGHT 12X118F 12X165R
Frame weight: 720 g +/- 5%
Fork weight: 320 g +/- 5%



Geometries

XS S M L XL XXL
C/C (cm) 43.2 46.2 48.2 50.2 52.2 54.2
L (cm) 50.9 52.7 54.3 55.9 57.6 58.9
H (cm) 45 48 50 52 54 56
A (°) 75.2 74.5 74 73.5 73 73
L1 (cm) 40.5 40.7 40.8 41 41.2 41.2
H1 (cm) 10.5 12.1 13.8 15.5 17.2 18.9
A1 (°) 70.6 71.5 72 72.5 73 73.5
Reach (mm) 374 380 387 393 400 408
Stack (mm) 505 523 541 559 577 595
Wheelbase (mm) 974 981 990 999 1009 1017
