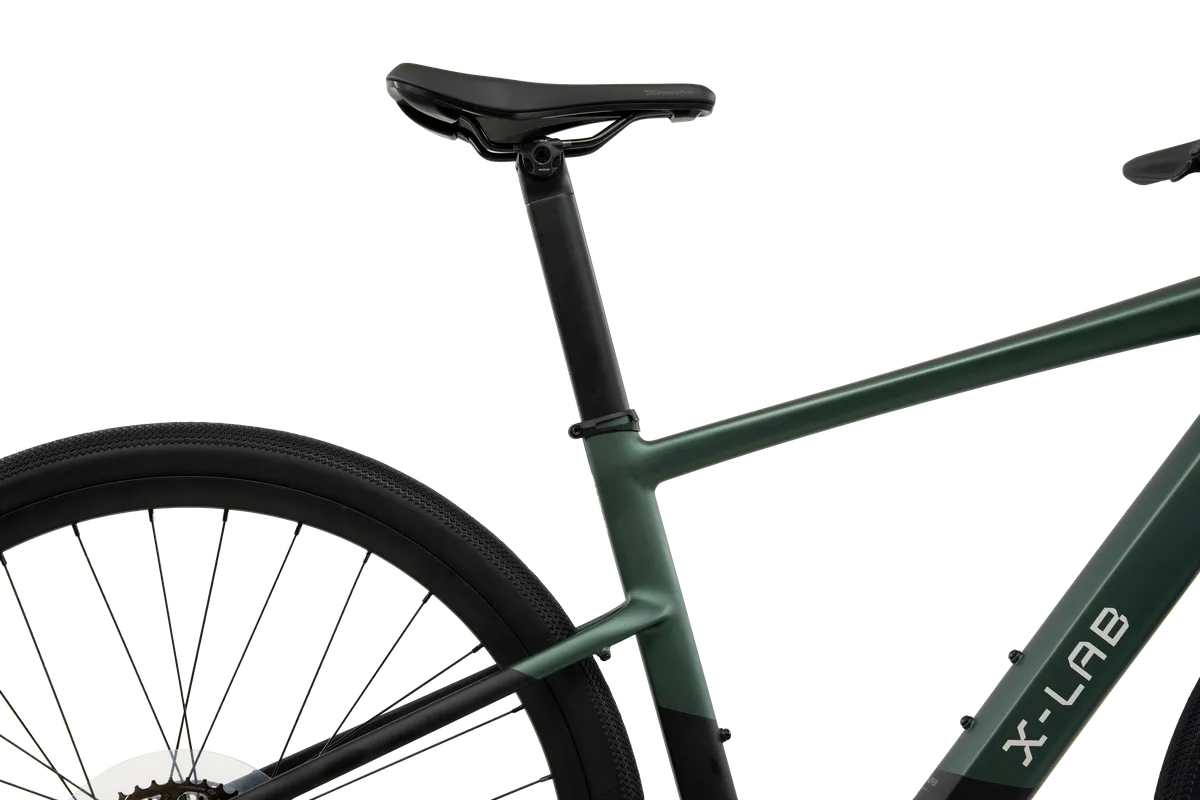

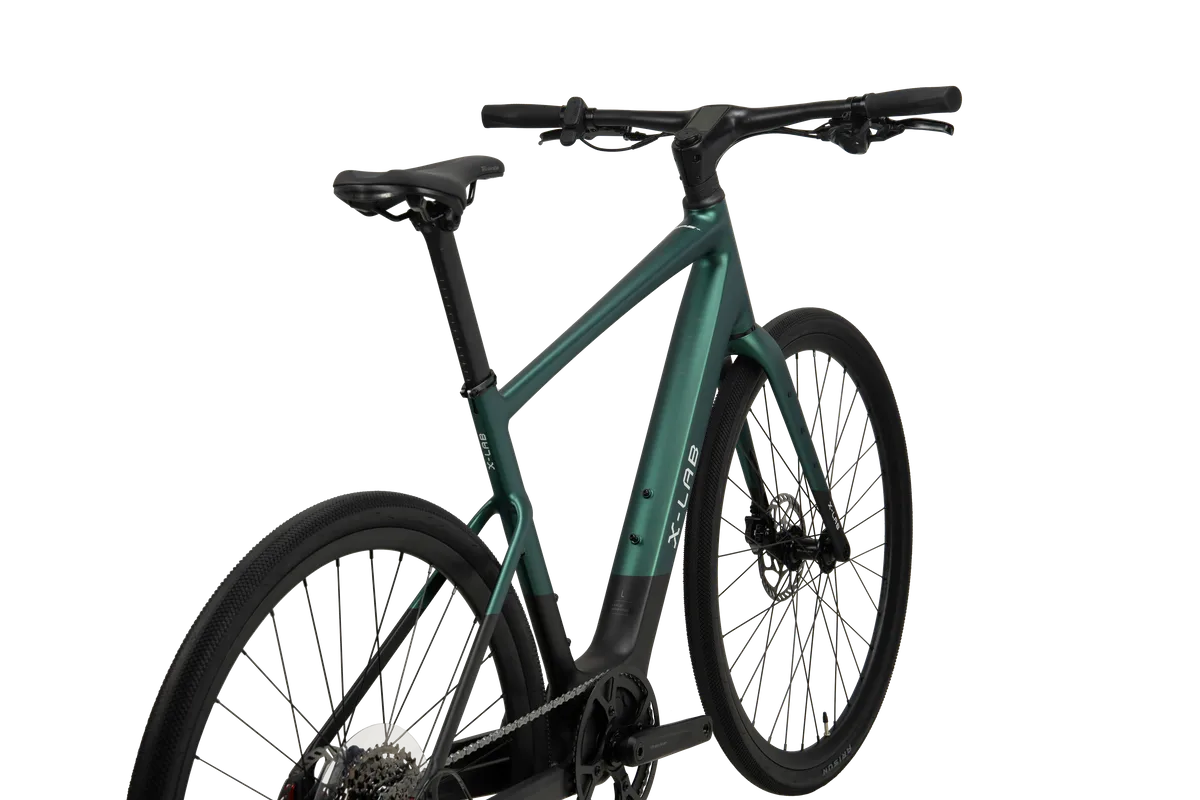

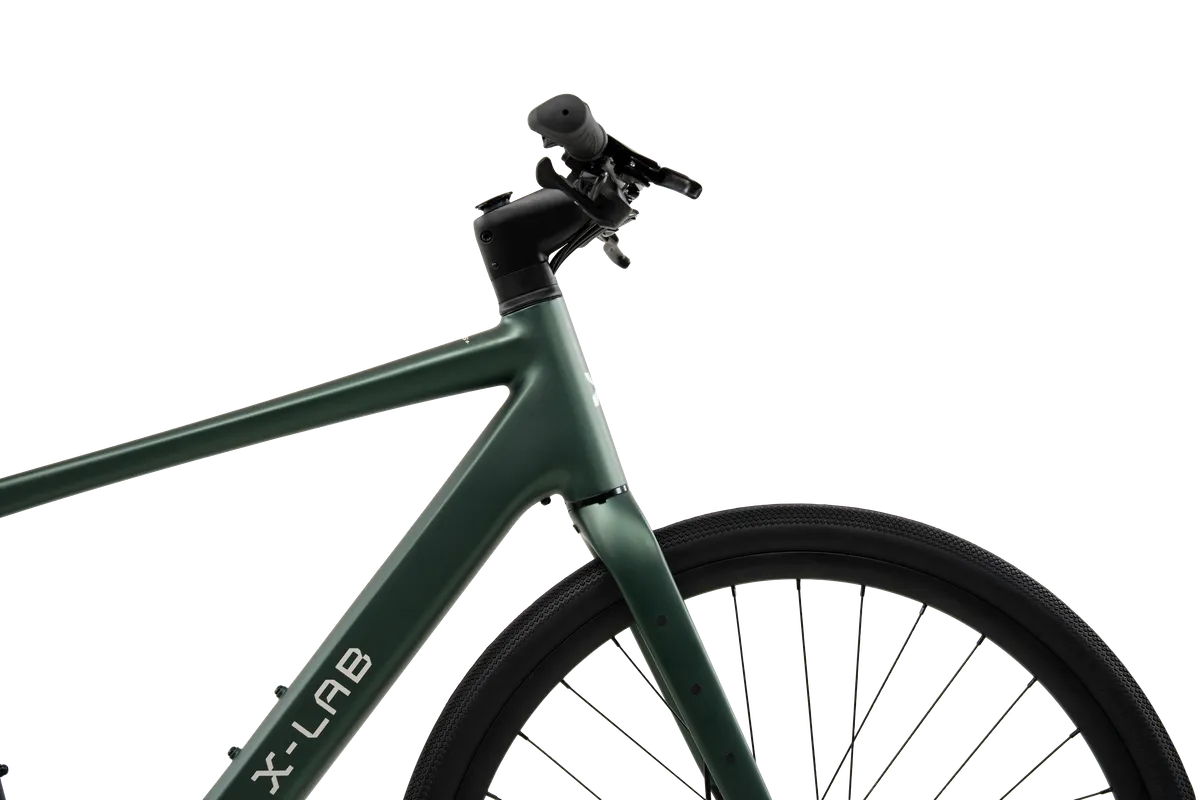

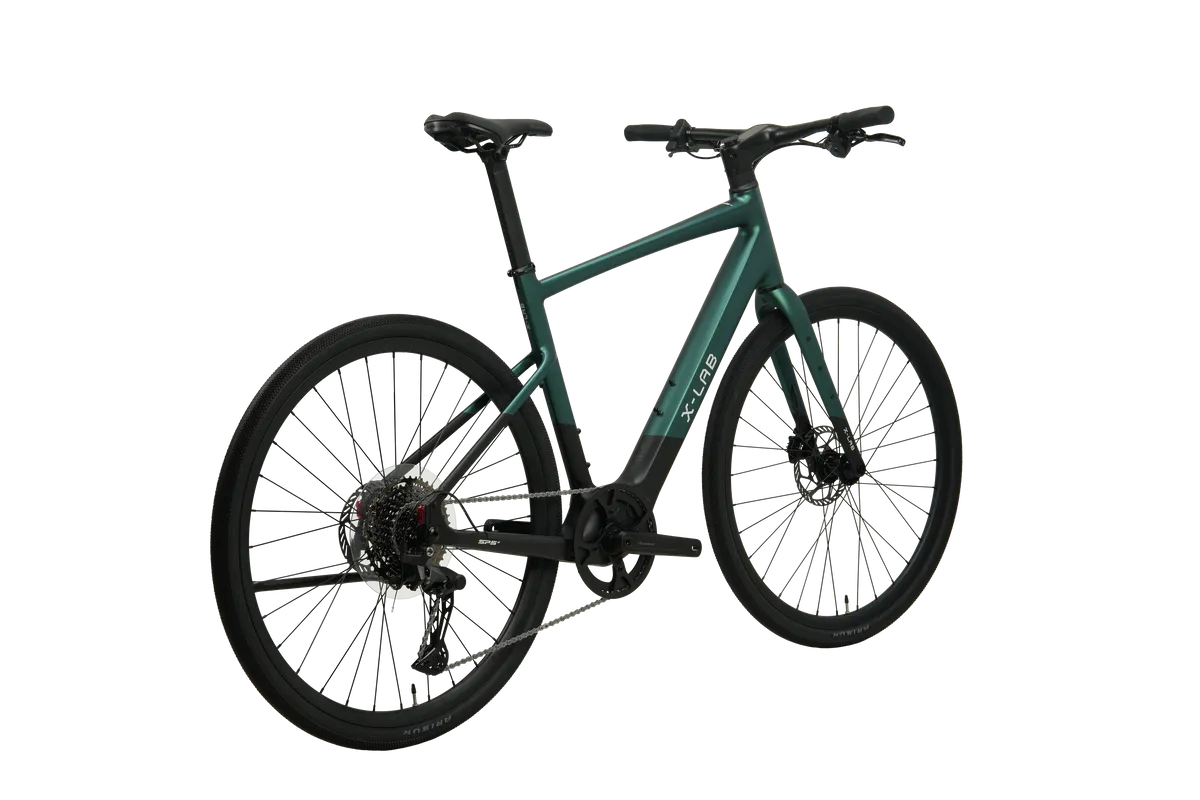

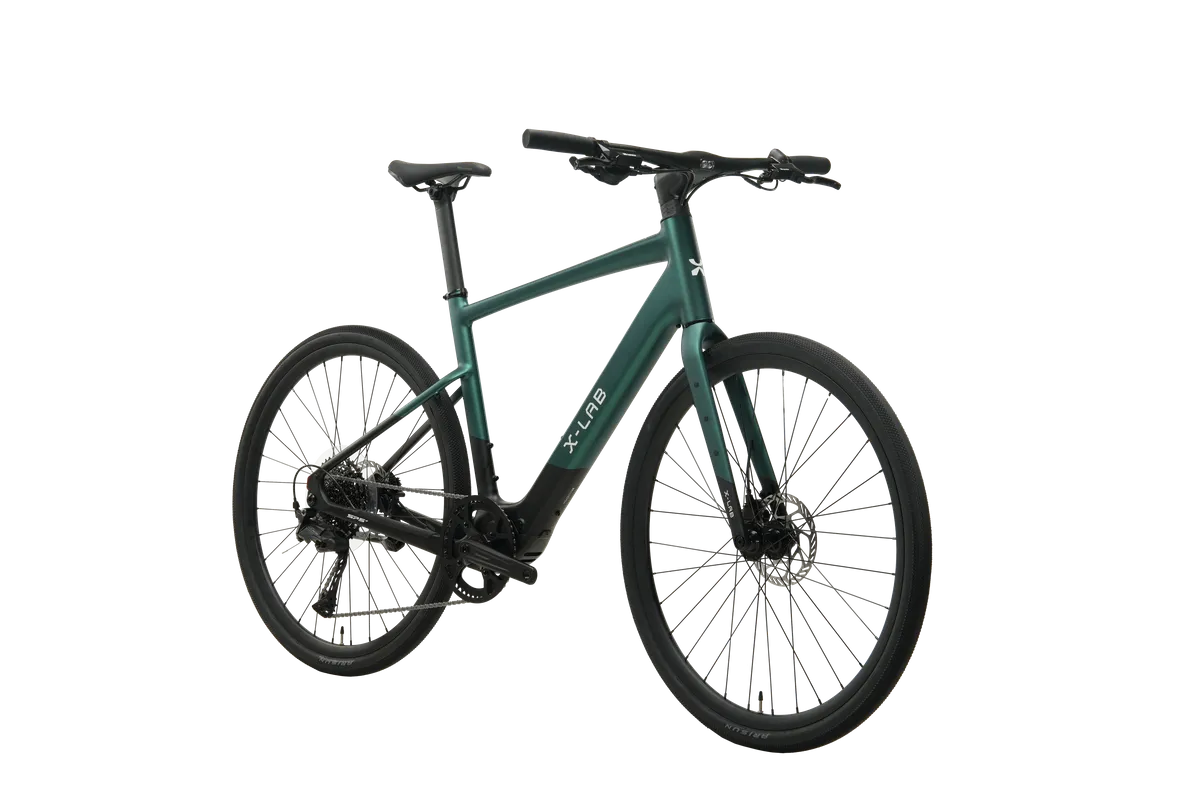

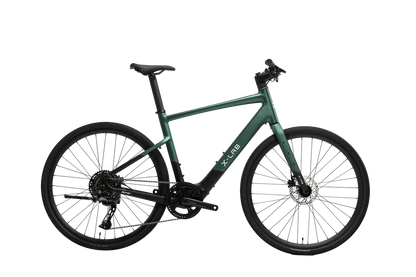

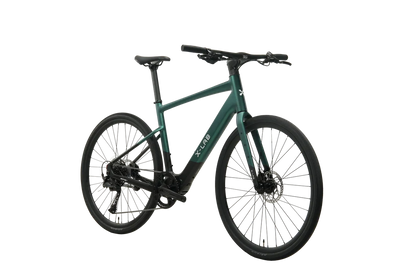

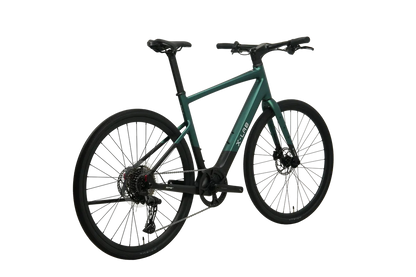

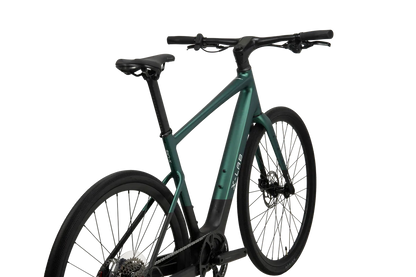

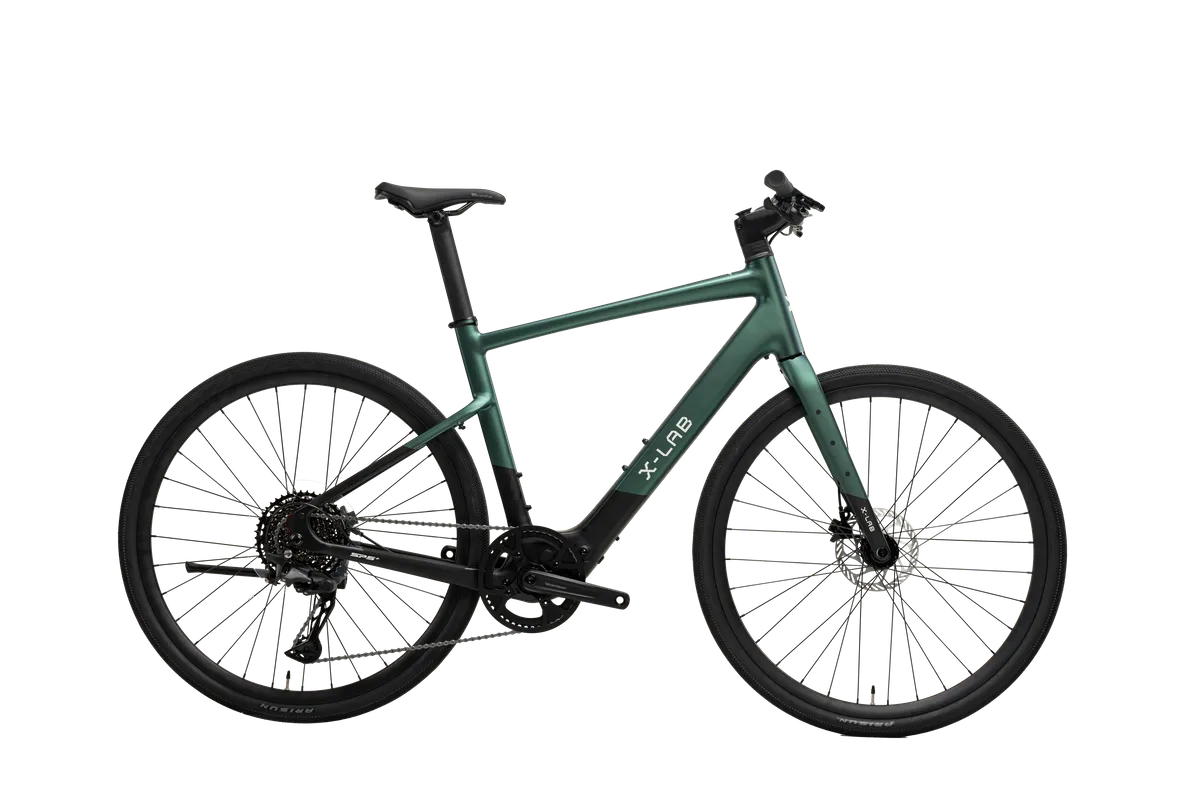

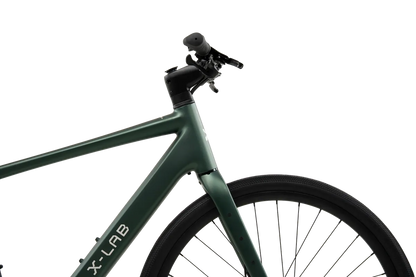

X-LAB SP5+ XDS X800 339Wh Pinecrest Green

X-LAB SP5+ XDS X800 339Wh Pinecrest Green

$3,699.90 NZD
$3,699.90 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.
WorkRide Financing Available For All Bikes

Versatile Electric Bike for Commuting & Everyday Riding

Key Features

  • Class 2 throttle + Apple Find My anti-theft technology
  • MIK rear rack + alloy fenders
  • Shimano CUES 9-speed drivetrain
  • Comfort setup: 2.4” tires + 80 mm suspension fork

Technical Specifications

Component Details
Frame XDS X6 Alloy Frame, UDH Compatible
Fork XDS Suspension Fork, Coil Spring, 80mm Travel, 110×15mm Thru‑axle

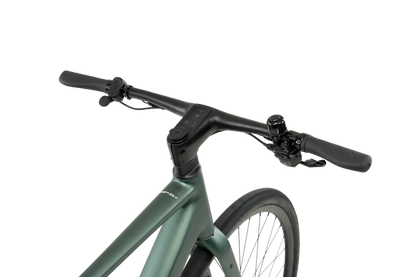

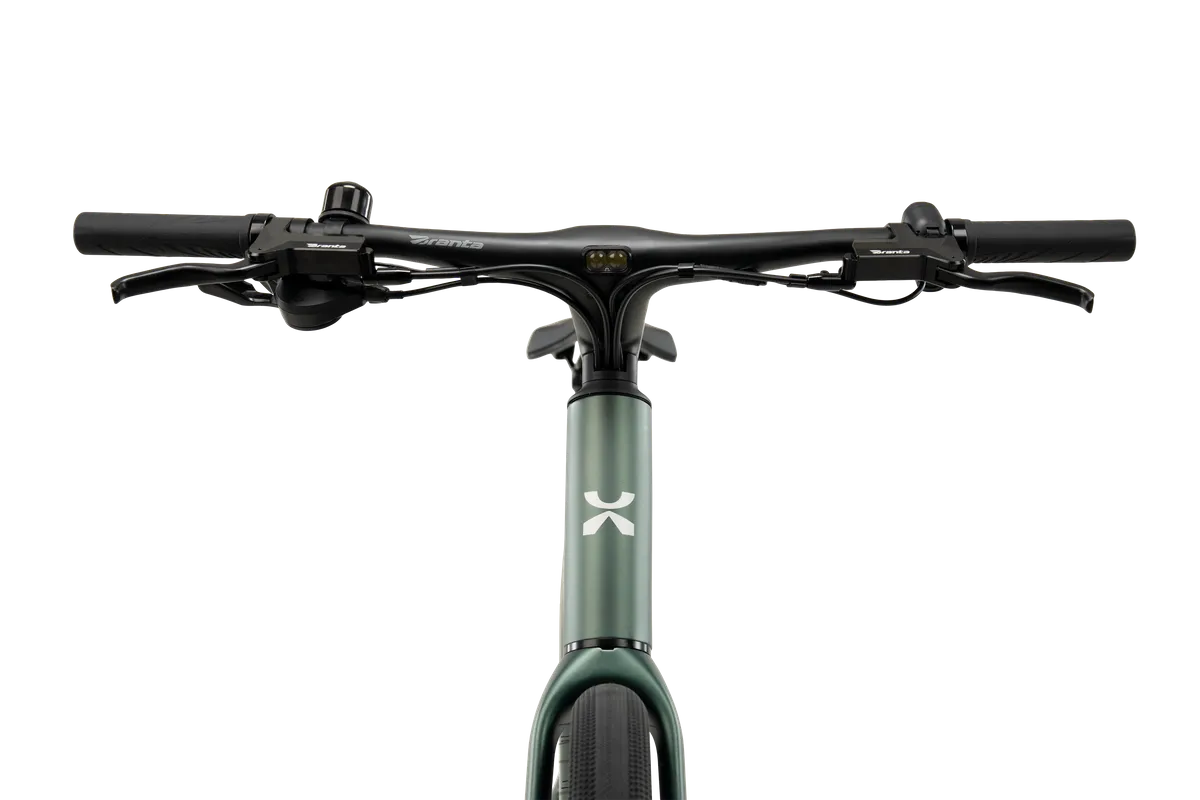

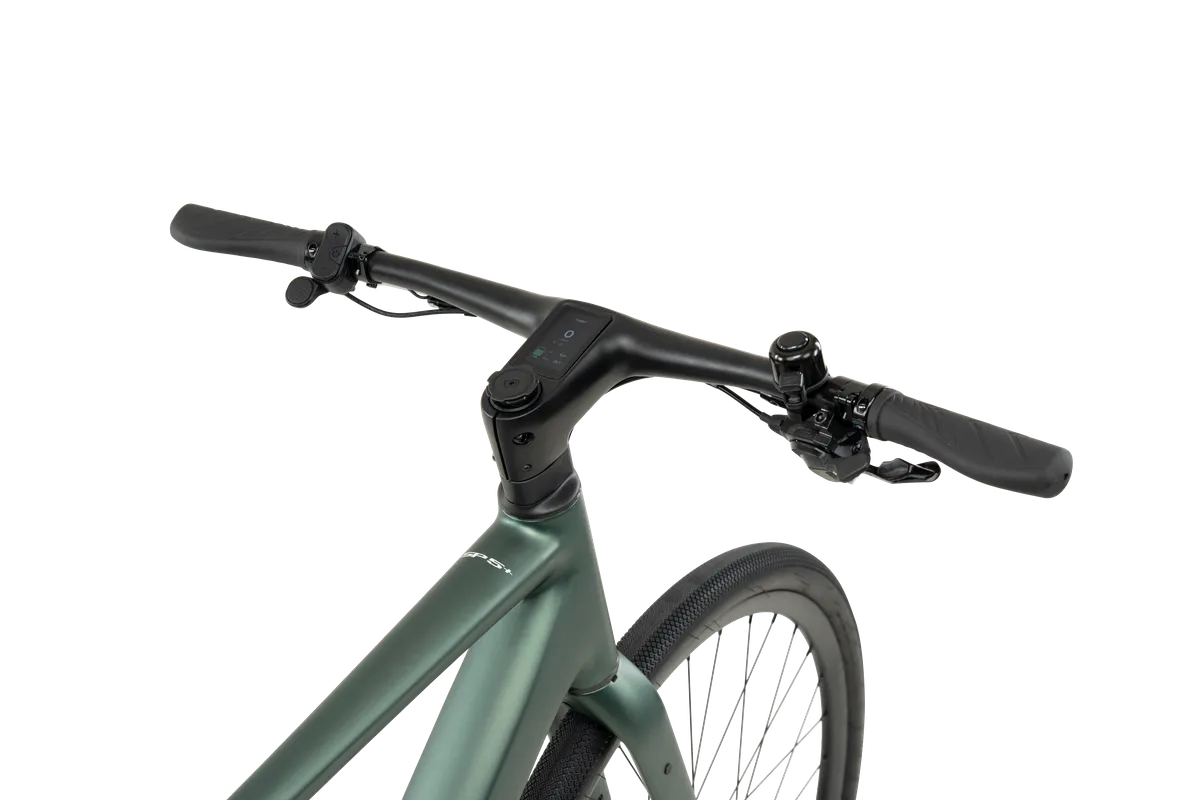

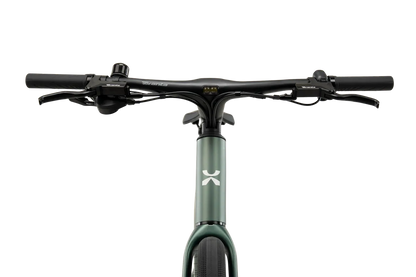

Handlebar / Stem Branta Alloy Integrated, with Display & Front Light

680mm Width · 90mm Length · 6° Rise · 15° Backsweep
Seatpost XDS 31.6mm Alloy Seatpost, 350mm Length

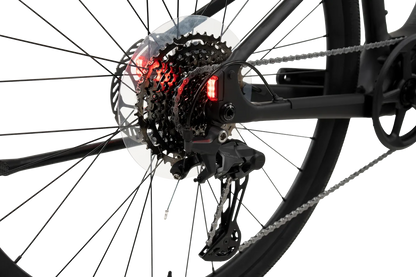

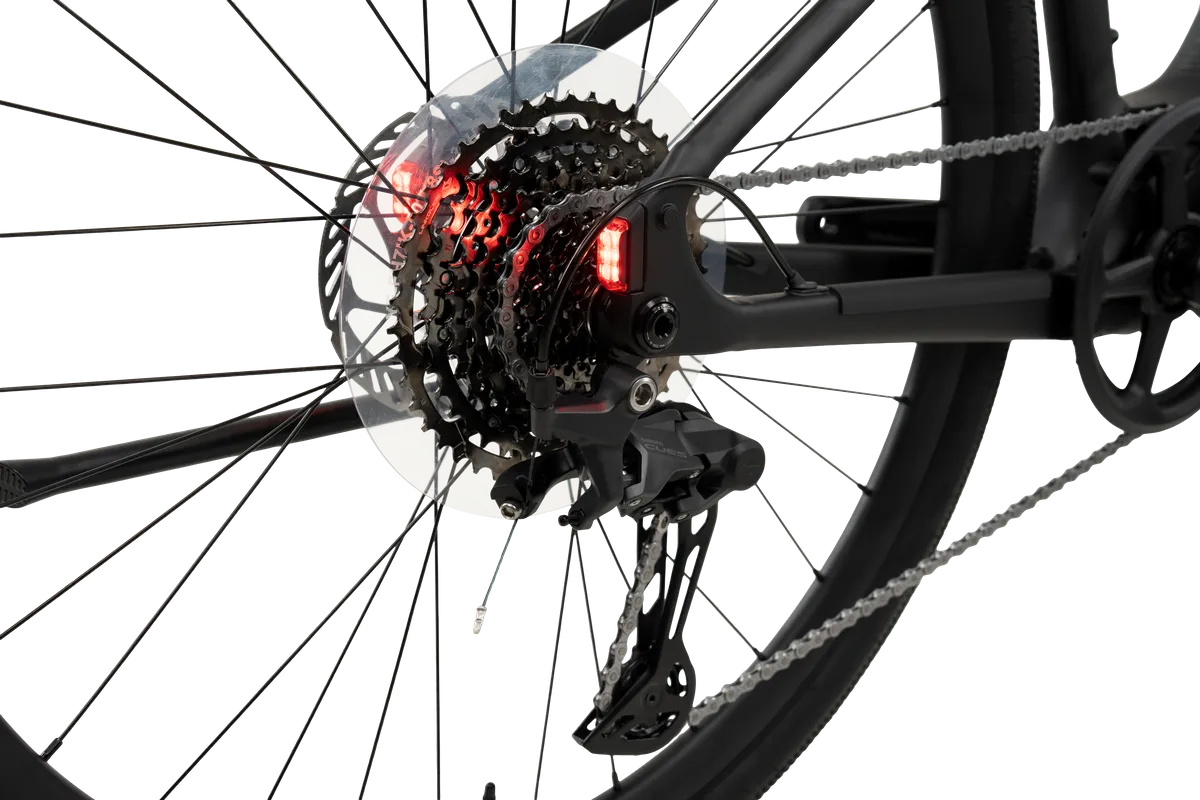

Rear Derailleur Shimano Cues RD‑U4000, 9‑Speed
Shifter Shimano Cues 9‑Speed
Brakes Branta EC4D Hydraulic E‑Bike Brake, with Cutoff Switch

3‑Finger Lever · 4‑Piston Caliper
Cassette Shimano CS‑LG300 11‑46T, 9‑Speed
Crankset Branta Alloy Crankset, 46T, Narrow‑Wide Teeth
Motor XDS Mid‑Drive X800

250W Continuous · 470W Peak · 95Nm Peak Torque

Dual‑Sided Torque Sensor
Battery XDS Li‑ion, 619Wh · LG Cells · 3A Charger

Charge Time: ~5 hours (0–100%)
Lights Integrated Front + Rear Lights (includes Brake Lights)
Speed Class 2: 20mph Pedal Assist + Throttle

Unlock to Class 3 via X‑Lab Bikes App
Range Up to 75 miles per charge
Certification UL2271 · UL2849 Certified

Ingress: Bike IP54 · Battery IPX7 · Motor/Electronics IPX6
Load Capacity 330 lbs / 150 kg (rider + cargo)
Connectivity Apple Find My · Bluetooth · OTA Updates
Rotors Branta PN28 — Front 180mm / Rear 180mm
Chain KMC E‑GLIDE‑S
Wheelset Branta Alloy E‑Bike Wheelset
Tires CST CTC‑06, 27.5” × 2.4 · 30TPI · Reflective Stripe

Max Clearance: 2.4”

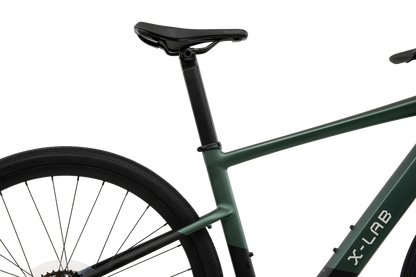

Saddle Branta C301
Phone Holder Quad Lock Mount
Rear Rack MIK‑HD Rack
Weight 24.76 kg / 54.58 lbs (Size L)
Sizes M · L
*Continuous Product Improvement — Specifications subject to change without notice. Confirm latest details with your dealer or X‑LAB support.

Geometry & Dimensions

Basic Geometry

Measurement Size M Size L
Seat Tube Length 420mm 440mm
Top Tube Length 581mm 638mm
Head Tube Length 134mm 159mm
Seat Tube Angle 75° 74°
Head Tube Angle 69° 69°
Chainstay 475mm 475mm
Wheelbase 1152mm 1201mm
Bottom Bracket Drop 70mm 70mm
Stack 635mm 659mm
Reach 410mm 451mm
Front Center 686mm 735mm
Standover Height 734mm 744mm

Component Geometry

Measurement Both Sizes
Fork Rake / Offset 51mm
Trail 85mm
Stem Length 90mm

Rider Fit Guide

Frame Size Height Range
M 157–173 cm · 5′2″–5′8″
L 173–188 cm · 5′8″–6′2″
